TWN 0081 ML
Fishing Chains

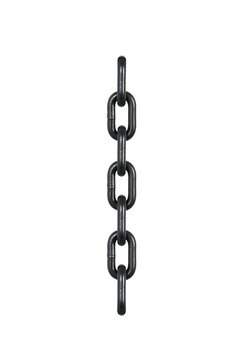

The mid-link and long-link round steel chains TWN 0081 are used to build nets in the fishing industry.
The manufacturing and testing requirements are based on manufacturer specifications.

Material according to DIN EN 818-2 and ASTM A391/A391M
Elongation at break: min. 15 %
Marking „T3“, „Germany“ and traceability code
Finish: black coloured (RAL 9005)

  • Material according to DIN EN 818-2
  • Elongation at break: min. 15 %
  • Marking „THI“, „Germany“ and traceability code
  • Finish: black coloured (RAL 9005)
Fishing Chains

Properties

Dimension


[mm]

Type

Article-No.

Nom. Size

d

[mm]

Pitch

p

[mm]

Inside Width

w3

[mm]

Outside Width

w2

[mm]

Breaking Force


[kN] min.

Weight
app.


[lbs/ft]

CAD


STEP

CAD


IGES

10 x 40

ML

F02881

10

40

40.0

15.0

126

1.34

Download

Download

13 x 55

ML

F02877

13

55

55.0

20.0

214

2.22

Download

Download

16 x 64

ML

F02875

16

64

64.0

24.0

322

3.43

Download

Download

19 x 76

ML

F02872

19

76

76.0

28.5

454

4.77

Download

Download

22 x 88

ML

F02878

22

88

88.0

33.0

610

6.45

Download

Download

Typ "ML" = Measuring Length
