Lifting and Lashing Points

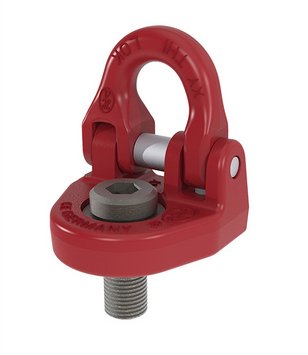

The screw-type rotating lifting points TWN 0121 are predominantly used in the mold- and tool-making industry. The sliding disc enables a twist-free alignment of the chain strands. The eyelet allows easy assembling with other lifting components.
The manufacturing and testing requirements are based on DIN EN 1677-1 and ISO 8539.
Screw Size dg [mm] | Article-No. | Working [lbs] | Thread Length lg [inch] | Dimensions [inch] | Weight [lbs/pc] | CAD STEP | CAD IGES | ||||||||
e | f | c | b | h | g | d | a | SW | |||||||
M161) | F35000 | 2,500 | 0.98 | 2.56 | 1.18 | 2.40 | 2.56 | 1.50 | 0.87 | 0.47 | 1.42 | 0.47 | 1.54 | ||
M20 | F35015 | 4,500 | 1.26 | 3.11 | 1.38 | 3.07 | 3.19 | 1.89 | 1.02 | 0.63 | 0.55 | 1.77 | 3.06 | ||
M241) | F35020 | 7,100 | 1.42 | 3.86 | 1.77 | 3.62 | 3.98 | 2.32 | 1.30 | 0.75 | 2.05 | 0.67 | 5.73 | ||
M301) | F35030 | 12,000 | 2.01 | 4.72 | 2.17 | 4.45 | 4.92 | 2.83 | 1.77 | 0.98 | 2.44 | 0.87 | 10.14 | ||
1) TWN 0121/1 | |||||||||||||||
