Lifting Products Grade 100

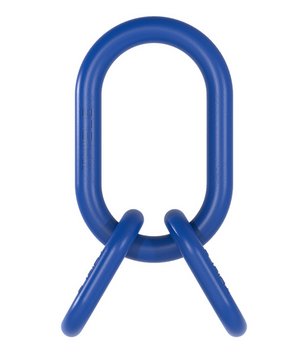

The master link assemblies TWN 1804 are designed to use for 3- and 4-leg Grade 100 lifting chains acc. to ASTM A906/A906 M-02. The dimensions comply with DIN 5688-3. The manufacturing and testing requirements comply with the ASTM A952/A952M, ISO 8539 and DIN EN 1677 parts 1 and 4, under consideration of Grade 100 working load limits. The links are coated with the color RAL 5002 (blue). Master Links are also available with welded handles.
Article-No. | Working SF 4:1* [lbs] | Dimensions [lbs] | Weight [lbs] | Tradesize for use in Chain Slings | CAD STEP | CAD IGES | ||||||
e | d1 | t1 | b1 | d2 | t2 | b2 | ||||||
F1804016 | 9,700 | 6.69 | 0.63 | 4.33 | 2.36 | 0.51 | 2.36 | 1.18 | 2.08 | 1/4" | ||
F1804018 | 11,900 | 7.48 | 0.71 | 5.12 | 2.76 | 0.51 | 2.36 | 1.18 | 2.65 | 9/32" | ||
F1804020 | 14,900 | 8.27 | 0.79 | 5.51 | 3.15 | 0.63 | 2.76 | 1.38 | 3.96 | 5/16" | ||
F1804026 | 25,100 | 10.63 | 1.02 | 7.09 | 3.94 | 0.79 | 3.54 | 1.77 | 8.31 | 3/8" | ||
F1804032 | 38,900 | 13.78 | 1.26 | 9.06 | 4.92 | 1.02 | 4.72 | 2.36 | 16.97 | 1/2" | ||
F1804040 | 58,800 | 16.54 | 1.57 | 11.42 | 8.30 | 1.10 | 5.12 | 2.56 | 28.30 | 5/8" | ||
F1804050 | 94,100 | 19.69 | 1.97 | 13.39 | 7.48 | 1.42 | 6.3 | 3.15 | 54.28 | 3/4" | ||
F1804056 | 111,000 | 22.05 | 2.20 | 14.96 | 8.27 | 1.57 | 7.09 | 3.54 | 75.70 | 7/8" | ||
F1804063 | 155,000 | 24.80 | 2.48 | 16.93 | 9.45 | 1.77 | 7.87 | 3.94 | 79.30 | 1" | ||
F1804080 | 244,000 | 29.13 | 3.15 | 20.47 | 11.42 | 1.97 | 8.66 | 4.33 | 190.25 | 1-1/4" | ||
*considering a sling angle of α = 60° | ||||||||||||
