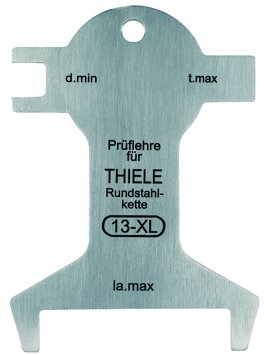

The chain measuring gauges TWN 1946 are used to measure the discard criteria of Grade 100 chain slings XL200.
P.O. Box 470487
Tulsa, OK 74147
USA
Lifting Products Grade 100
TWN 1946
Chain Gauges
Properties
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | |||||||
e | d1 | d2 | d3 | b | c | a | f | ||||
5/16"* | F32820 | 5,700 | 3.70 | 1.77 | 0.63 | 0.63 | 3.03 | 2.05 | 4.61 | 0.33 | 1.63 |
3/8" | F32825 | 8,800 | 3.82 | 1.77 | 0.63 | 0.63 | 3.03 | 2.05 | 4.88 | 0.43 | 1.74 |
1/2"* | F32830 | 15,000 | 4.61 | 1.97 | 0.79 | 0.79 | 3.54 | 2.32 | 5.94 | 0.55 | 3.15 |
5/8" | F32835 | 22,600 | 5.75 | 2.56 | 0.98 | 0.98 | 4.53 | 2.87 | 7.44 | 0.67 | 6.00 |
*On request | |||||||||||
