Lifting Products Grade 100

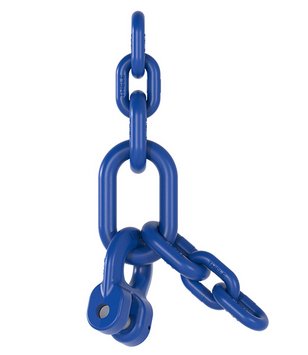

The Grade 100 shortening devices TWN 1896 for fixed size master links are used in chain slings and enable the leg lengths to be adapted to the conditions of use.
The manufacturing and testing requirements comply with the ASTM A952/A952M, ISO 8539 and DIN EN 1677 parts 1 and 4, under consideration of Grade 100 working load limits.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||
e | e1 | e2 | Bow | ||||||||
d | t | b | |||||||||
1/4" | F189606 | 3,100 | 5.39 | 1.22 | 2.36 | 0.39 | 1.81 | 0.91 | 0.71 | ||
5/16" | F189608 | 5,700 | 6.89 | 1.50 | 3.07 | 0.51 | 2.36 | 1.18 | 1.54 | ||
3/8" | F189610 | 8,800 | 8.46 | 1.81 | 3.90 | 0.63 | 2.76 | 1.38 | 3.09 | ||
1/2" | F189613 | 15,000 | 10.63 | 2.32 | 4.96 | 0.71 | 3.35 | 1.57 | 5.73 | ||
5/8" | F189616 | 22,600 | 12.83 | 2.99 | 5.91 | 0.87 | 3.94 | 1.97 | 11.02 | ||
