Lifting Products Grade 100

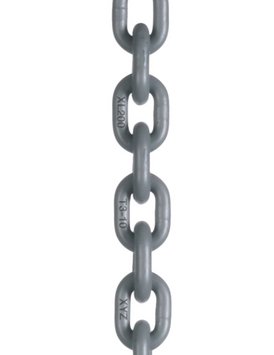

Grade 100 lifting chains XL200 TWN 0072 are made from CrNiMo alloyed steel and are used to assemble chain slings and lashing chains. The max. application temperature is 205 °C.
The testing requirements for these high-quality lifting chains are based on DIN EN 818 and ASTM 973.
Trade Size | Article-No. | Working [lbs] | Nom. Size dn [inch] | Pitch pn [inch] | Inside Width w3 [inch] | Outside Width w2 [inch] | Weight [lbs/ft] | CAD STEP | CAD IGES |
1/4" | F01616 1) | 3,100 | 0.24 | 0.71 | 0.33 | 0.87 | 0.54 | ||
9/32" | F01621 1) | 4,300 | 0.28 | 0.83 | 0.38 | 1.02 | 0.74 | ||
5/16" | F01617 1) | 5,700 | 0.31 | 0.94 | 0.44 | 1.17 | 1.01 | ||
3/8" | F01618 1) | 8,800 | 0.39 | 1.18 | 0.53 | 1.46 | 1.55 | ||
1/2" | F01619 1) | 15,000 | 0.51 | 1.54 | 0.71 | 1.89 | 2.62 | ||
5/8" | F01620 1) | 22,600 | 0.63 | 1.89 | 0.84 | 2.33 | 3.90 | ||
3/4" | F01638B 2) | 35,300 | 0.79 | 2.36 | 1.06 | 2.91 | 6.66 | ||
7/8" | F01650B 2) | 42,700 | 0.87 | 2.60 | 1.16 | 3.20 | 8.07 | ||
1" | F01660B 2) | 59,700 | 1.02 | 3.07 | 1.37 | 3.79 | 11.22 | ||
1-1/4" | F01670B 2) | 90,400 | 1.26 | 3.78 | 1.69 | 4.66 | 17.54 | ||
TWN 0072 sim. to ASTM 973 Elongation at break, self colored: min. 25 %; other surface finishes min. 20 %. Factor: Load- to Proof- to Breaking Stress 1 : 2 : 4 1) Finish: Grey, RAL 7011 2) Finish: Blue, RAL 5002 | |||||||||
