Lifting Products Grade 100

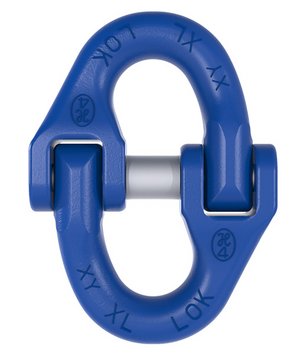

The Grade 100 XL-LOK connecting links TWN 1820 are used to connect lifting chains with sling components to assemble chain slings and lashing chains. The manufacturing and testing requirements are based on the ASTM A952/A952M, ISO 8539 and DIN EN 1677-1, under consideration of Grade 100 working load limits.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||
a | b | c | e | f | g | ||||||
1/4" | F30807 | 3,100 | 2.40 | 0.47 | 1.52 | 1.77 | 0.31 | 0.55 | 0.15 | ||
9/32" | F308090 | 4,300 | 2.80 | 0.55 | 1.85 | 1.99 | 0.35 | 0.63 | 0.31 | ||
5/16" | F30817 | 5,700 | 3.35 | 0.63 | 2.17 | 2.44 | 0.39 | 0.75 | 0.44 | ||
3/8" | F30827 | 8,800 | 3.82 | 0.71 | 2.62 | 2.83 | 0.51 | 0.94 | 0.77 | ||
1/2" | F30837 | 15,000 | 4.92 | 0.91 | 3.25 | 3.43 | 0.67 | 1.10 | 1.63 | ||
5/8" | F30847 | 22,600 | 5.75 | 1.24 | 4.29 | 4.13 | 0.83 | 1.34 | 2.65 | ||
3/4" | F308570 | 35,300 | 7.03 | 1.46 | 5.65 | 5.02 | 0.98 | 1.77 | 6.17 | ||
7/8" | F308670 | 42,700 | 7.74 | 1.59 | 5.93 | 5.53 | 1.08 | 1.77 | 7.72 | ||
1" | F308770 | 59,700 | 9.13 | 1.87 | 7.01 | 6.54 | 1.30 | 2.20 | 12.79 | ||
1-1/4" | F308870 | 88,200 | 11.24 | 2.30 | 8.68 | 8.03 | 1.57 | 2.76 | 24.03 | ||
