Lifting Products Grade 80

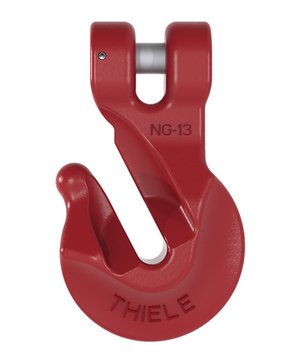

The Grade 80 clevis shortening hooks TWN 0827 are used to adjust the strand lengths of chain slings. The clevis design enables the direct attachment to the lifting chain.
The manufacturing and testing requirements correspond to the ASTM A952/A952M, ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||
e | g | l | b | ||||||
5/16" | F33200 | 4,500 | 2.40 | 0.37 | 4.02 | 2.40 | 1.17 | ||
3/8" | F33210 | 7,100 | 2.87 | 0.47 | 4.92 | 2.95 | 2.14 | ||
1/2" | F33220 | 12,000 | 3.70 | 0.59 | 6.30 | 3.74 | 4.41 | ||
5/8" | F33230 | 18,100 | 4.41 | 0.71 | 7.40 | 4.72 | 7.50 | ||
3/4" | F33245 | 28,300 | 5.83 | 0.89 | 9.53 | 5.55 | 16.09 | ||
