Lifting Products Grade 80

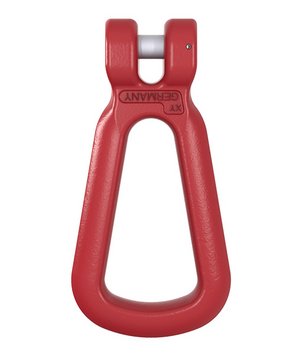

The Grade 80 clevis suspension links TWN 0820 are predominantly used to assemble 1-leg basket slings for bundling of loads.
The manufacturing and testing requirements are based on the ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||||||
e | f | g | a | c | h | b | ||||||
5/16" | F31000 | 4,500 | 3.68 | 1.50 | 2.68 | 4.76 | 0.87 | 0.51 | 2.44 | 0.79 | ||
3/8" | F31010 | 7,100 | 4.96 | 1.93 | 3.74 | 6.52 | 1.10 | 0.75 | 3.46 | 1.90 | ||
1/2" | F31020 | 12,000 | 6.24 | 2.36 | 4.72 | 8.15 | 1.46 | 0.87 | 4.09 | 3.53 | ||
5/8" | F31030 | 18,100 | 7.36 | 3.15 | 5.51 | 9.69 | 1.69 | 1.10 | 5.35 | 6.61 | ||
