Lifting Products Grade 80

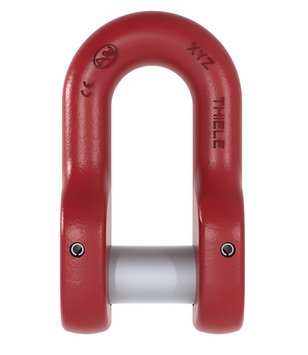

The Grade 80 shackles TWN 0870 with bolt are used as end fittings in chain slings. The shackles can be mounted directly on straps and traverses. The dimensions of the special shackles comply with DIN 82101.
The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Trade Size [DIN 82101] | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||
h1 | d1 | d2 | d4 | b1 | b2 | |||||||
3/8" | F30311 | 1 | 7,100 | 1.93 | 0.59 | 1.26 | 0.63 | 0.83 | 1.85 | 0.77 | ||
1/2" | F30321 | 1.6 | 12,000 | 2.40 | 0.75 | 1.57 | 0.79 | 1.06 | 2.40 | 1.57 | ||
5/8" | F30331 | 2.5 | 18,100 | 2.87 | 0.91 | 1.89 | 0.94 | 1.30 | 2.95 | 2.78 | ||
11/16"-3/4" | F30341 | 4 | 28,300 | 3.58 | 1.14 | 2.36 | 1.18 | 1.65 | 3.78 | 5.73 | ||
7/8" | F30351 | 5 | 34,200 | 4.37 | 1.30 | 2.83 | 1.42 | 1.85 | 4.21 | 8.82 | ||
1" | F30361 | 6 | 47,700 | 4.72 | 1.46 | 3.07 | 1.54 | 2.09 | 4.76 | 12.57 | ||
1-1/8" | F30371 | 8 | 55,100 | 5.51 | 1.61 | 3.54 | 1.77 | 2.36 | 5.35 | 22.05 | ||
1-1/4" | F30381 | 10 | 72,300 | 5.79 | 1.77 | 3.78 | 1.89 | 2.60 | 5.91 | 23.15 | ||
1-7/16" | F30391 | 12 | 88,200 | 6.22 | 1.97 | 4.09 | 2.05 | 2.87 | 6.57 | 30.64 | ||
1-9/16" | F30401 | 16 | 110,200 | 7.28 | 2.17 | 4.72 | 2.36 | 3.19 | 7.28 | 45.19 | ||
1-3/4" | F30411 | 20 | 138,900 | 8.31 | 2.40 | 5.35 | 2.68 | 3.54 | 8.11 | 61.93 | ||
