TWN 0897

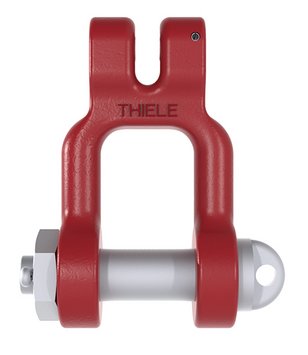

Special Coupling Shackles with Bolt, Nut and Roller Pin

The Grade 80 special coupling shackles TWN 0897 with bolt, nut and roll pin are used as end fittings in chain slings. The clevis design enables the direct attachment to the lifting chain. The special coupling shackles can also be mounted directly on straps and traverses.

The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.

Special Coupling Shackles with Bolt, Nut and Roller Pin

Properties

Trade Size	Article-No.	Working Load Limit [lbs]	Dimensions [inch]						Weight app. [lbs]	CAD STEP	CAD IGES
Trade Size	Article-No.	Working Load Limit [lbs]	e	d	c	f	b₁	b₂	Weight app. [lbs]	CAD STEP	CAD IGES
1/4"	F30586	2,500	154.32	44.09	85.98	101.41	77.16	143.30	1.50	Download	Download
5/16"	F30596	4,500	154.32	44.09	88.18	101.41	77.16	143.30	1.70	Download	Download
