Lifting Products Grade 80

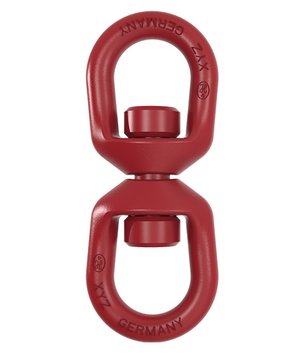

The Grade 80 swivels TWN 0845 are used to assemble chain slings. The swivels enable the chain legs to be aligned without twisting. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320.
The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.
Trade Size
| Article-No. | Working [lbs] | Dimensions [lbs] | Weight [lbs] | CAD STEP | CAD IGES | |||
e | d | f | b | ||||||
1/4" | F34000 | 2,500 | 4.25 | 0.39 | 1.06 | 1.18 | 0.73 | ||
5/16" | F34010 | 4,500 | 6.61 | 0.63 | 1.73 | 1.73 | 2.93 | ||
3/8" | F34020 | 7,100 | 6.61 | 0.63 | 1.73 | 1.73 | 2.93 | ||
1/2" | F34030 | 12,000 | 7.24 | 0.75 | 1.81 | 2.01 | 4.63 | ||
5/8" | F34040 | 18,100 | 9.92 | 0.98 | 2.60 | 2.52 | 9.81 | ||
