TWN 5201

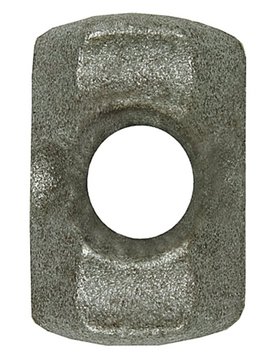

Special Flight Bar Flanges

The special flight bar flanges TWN 5201 are used to fasten flight bars and round steel chains in loader wagons and dung spreaders. The manufacturing and testing requirements are based on the specifications of the manufacturer THIELE.

Properties

Dimension [mm]	Article-No.	Type	Weight app. [lbs/pc]
8 x 24/8 x 22,8	Z03598	MF8x22,8/24	0.04
8 x 31	Z03599	MF8x31	0.09
9,5 x 27	Z03600	MF9,5x27	0.12
10 x 31	Z03602	MF10x31	0.16
10 x 38	Z03603	MF10x38	0.12
Note: Min. order quantity: 50 pieces.
