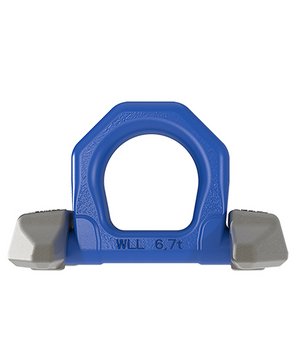

TWN 1473
Lashing Points with two weld-on Brackets

The weld-on lashing points TWN 1473 with two weld-on brackets are used for lashing of loads. The lashing points are predominantly welded to the vehicle frame (semi-trailers, trailers).

The manufacturing and testing requirements are based on the ISO 8539 and DIN EN 1677-1.

Lashing Points with two weld-on Brackets

Properties

Trade Size	Article-No.	Article-No. (Ring only)	Tensioner under straight load [daN]	Dimensions [lbs]													Weight app. [lbs]	CAD STEP	CAD IGES
Trade Size	Article-No.	Article-No. (Ring only)	Tensioner under straight load [daN]	d₁	d₂	b	a	l	e	k	h	c	s	f	m	d₃	Weight app. [lbs]	CAD STEP	CAD IGES
10-10	F352001	F352002	8,000	0.55	0.55	1.89	2.91	5.28	2.91	2.91	1.10	2.56	0.08	2.24	4.13	0.63	1.74	Download	Download
13-10	F352011	F352012	13,500	0.79	0.79	2.36	3.94	6.69	3.35	3.66	1.46	3.15	0.08	2.40	5.35	0.87	3.81	Download	Download
*Upright standing ring.
