Lashing Products

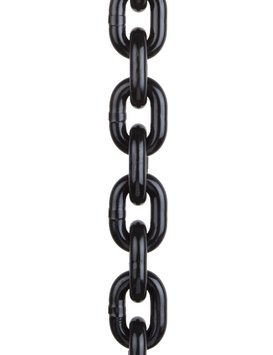

The Grade 80 lifting chains TWN 0805 are made from CrNiMo alloy steel and are used to assemble chain slings and lashing chains. The max. application temperature is 752 °F (400 °C).
The manufacturing and testing requirements of this lashing chains are based on the ASTM A973/A973M, ASTM A391/A391M, DIN EN 818-2 and also comply with the German Statutory Accident Insurance test principle GS-HM 37
Trade Size
| Article-No. | Working [lbs] | Nom. Size
| Pitch
| Inside Width w2 [inch] | Outside Width w3 [inch] | Weight [lbs/ft] | CAD STEP | CAD IGES | |||
self-coloured | RAL 9005 | Corrothiel | Electro | dn [inch] | pn [inch] | |||||||
1/4" | F01452 | F01453 | F01454 | F01448 | 2,500 | 0.24 | 0.71 | 0.31 | 0.87 | 0.55 | ||
9/32" | F01458 | F01459 | F01457 | F014601 | 3,500 | 0.28 | 0.83 | 0.37 | 1.02 | 0.78 | ||
5/16" | F01464 | F01465 | F01429 | F01433 | 4,500 | 0.31 | 0.94 | 0.43 | 1.17 | 0.98 | ||
3/8" | F01469 | F01470 | F01450 | F01445 | 7,100 | 0.39 | 1.18 | 0.51 | 1.46 | 1.52 | ||
1/2" | F01474 | F01475 | F01476 | F014781 | 12,000 | 0.51 | 1.54 | 0.69 | 1.89 | 2.53 | ||
5/8" | F01479 | F01480 | F01487 | F014821 | 18,100 | 0.63 | 1.89 | 0.82 | 2.33 | 3.83 | ||
11/16" | F01484 | F01485 | F04580 | F01484G | 22,000 | 0.71 | 2.13 | 0.92 | 2.62 | 4.77 | ||
3/4" | F01494 | F01495 | F04606 | F014944 | 28,300 | 0.79 | 2.36 | 1.02 | 2.91 | 6.05 | ||
7/8" | F01499 | F01500 | F04629 | F015111 | 34,200 | 0.87 | 2.60 | 1.13 | 3.20 | 7.23 | ||
1" | F01514 | F01515 | F04695 | * | 47,700 | 1.02 | 3.07 | 1.33 | 3.79 | 10.21 | ||
1-1/8" | F01519 | F01520 | F01521 | – | 55,100 | 1.10 | 3.31 | 1.43 | 4.09 | 11.83 | ||
1-1/4" | F01524 | F01525 | F01526 | F01527 | 72,300 | 1.26 | 3.78 | 1.64 | 4.65 | 15.46 | ||
1-13/32" | F01529 | F01530 | F04814 | – | 88,200 | 1.42 | 4.25 | 1.84 | 5.24 | 19.49 | ||
1-9/16" | F01534 | F01535 | F04838 | – | 110,200 | 1.57 | 4.72 | 2.05 | 5.83 | 24.20 | ||
1-3/4" | F01539 | F01540 | F04889 | – | 138,900 | 1.77 | 5.31 | 2.30 | 6.57 | 30.58 | ||
2" | F01545 | F01546 | F04900 | – | 176,400 | 1.97 | 5.91 | 2.56 | 7.28 | 37.64 | ||
2-3/16" | F01555 | F01556 | F04908 | – | 220,500 | 2.20 | 6.69 | 2.87 | 8.15 | 48.73 | ||
2-1/2" | – | F01566 | – | – | 275,600 | 2.48 | 7.48 | 3.22 | 9.17 | 59.82 | ||
2-13/16" | – | F01598 | – | – | 352,700 | 2.80 | 8.27 | 3.63 | 10.35 | 75.92 | ||
