Lashing Products

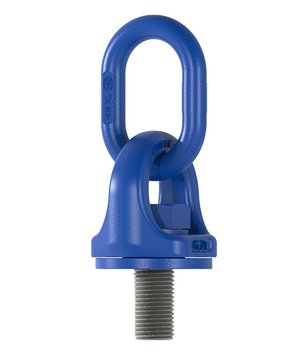

The screw-type X-TITAN lifting points TWN 1120 are predominantly used for the transportation of moulds, tools, dies, machine elements and steel constructions. The intermediate links allow an easy assembling to other lifting components.
The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.
Screw Size dg [mm] | Article-No. | Working [lbs] | Thread Length lg [mm] | Dimensions [inch] | Weight [inch] | CAD STEP | CAD IGES | |||||||
e | f | b | t | d | h | SW | a | |||||||
M10 | F34390 | 1,000 | 0.75 | 3.74 | 1.57 | 1.10 | 1.97 | 0.39 | 2.17 | 0.63 | 1.69 | 0.90 | ||
M12 | F34395 | 1,300 | 0.94 | 3.74 | 1.57 | 1.10 | 1.97 | 0.39 | 2.17 | 0.71 | 1.69 | 0.95 | ||
M16 | F34400 | 3,100 | 1.14 | 3.74 | 1.57 | 1.10 | 1.97 | 0.39 | 2.17 | 0.94 | 1.69 | 1.06 | ||
M20 | F34410 | 5,500 | 1.30 | 4.53 | 1.93 | 1.34 | 2.36 | 0.47 | 2.60 | 1.18 | 2.13 | 1.74 | ||
M24 | F34420 | 7,700 | 1.57 | 5.31 | 2.17 | 1.57 | 2.76 | 0.63 | 3.15 | 1.42 | 2.56 | 3.31 | ||
M30 | F34430 | 15,000 | 2.05 | 6.57 | 2.60 | 1.97 | 3.35 | 0.71 | 3.98 | 1.81 | 3.35 | 6.57 | ||
M36 | F34440 | 18,100 | 2.60 | 8.35 | 3.62 | 1.97 | 4.53 | 0.87 | 4.72 | 2.17 | 3.78 | 10.58 | ||
