TWN 1884
XKE-Points

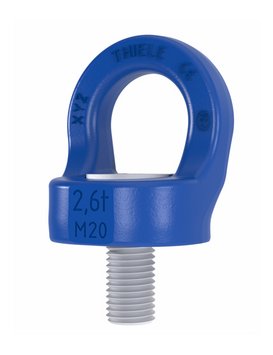

The screw-on XKE-Points TWN 1884 with ball-bearing are predominantly used in the molds- and tool-making industries. The ball-bearing allows the load to be rotated and turned under load. The eccentrically positioned eye makes it easy to connect lifting equipment. The XKE-points have a multiple times higher load capacity than DIN 580-eye bolts and can be loaded in every direction. The eccentrically arranged eyelet enables an easy assembly with a standard allen key.

The manufacturing and testing requirements are based on the ISO 8539 and DIN EN 1677-1.

Properties

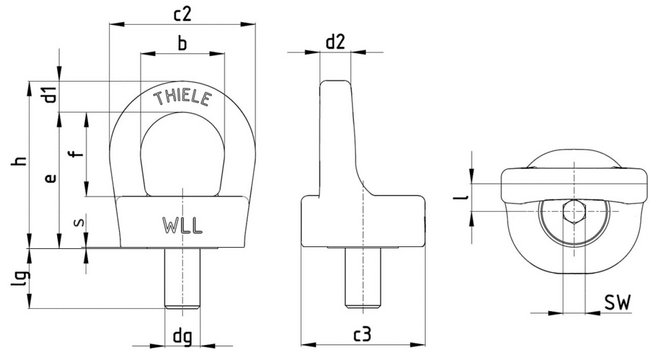

Screw Size d_g [mm]	Article-No.	Working Load Limit [lbs]	Thread Length l_g [inch]	Dimensions [inch]											Weight app. [lbs]	CAD STEP	CAD IGES
Screw Size d_g [mm]	Article-No.	Working Load Limit [lbs]	Thread Length l_g [inch]	b	c₂	c₃	e	f	h	d₁	d₂	l	s	SW	Weight app. [lbs]	CAD STEP	CAD IGES
M8	F38005	700	0.63	1.02	1.77	1.46	1.57	1.02	1.97	0.37	0.37	0.31	0.02	0.20	0.87	Download	Download
M10	F38006	1,100	0.63	1.02	1.77	1.46	1.57	1.02	1.97	0.37	0.37	0.31	0.02	0.24	0.87	Download	Download
M12	F38007	2,200	0.71	1.18	2.01	1.69	1.85	1.18	2.24	0.41	0.41	0.39	0.02	0.31	1.41	Download	Download
M16	F38010	3,700	1.06	1.50	2.60	2.20	2.44	1.50	2.99	0.55	0.55	0.51	0.02	0.39	3.21	Download	Download
M20	F38020	5,700	1.30	1.65	2.91	2.40	2.76	1.65	3.39	0.63	0.63	0.59	0.02	0.47	4.81	Download	Download
M24	F38030	7,700	1.54	2.01	3.35	2.56	3.23	2.01	3.90	0.67	0.71	0.63	0.02	0.55	6.51	Download	Download
M30	F38040	13,200	1.77	2.44	4.09	3.23	3.82	2.44	4.65	0.83	0.87	0.79	0.04	0.75	11.13	Download	Download
M36	F38050	17,600	2.17	2.95	5.16	3.62	4.57	2.95	5.67	1.10	1.10	0.98	0.04	0.75	20.27	Download	Download
M42	F38060	25,400	2.52	3.74	6.81	4.80	5.59	3.74	7.13	1.54	1.54	1.30	0.05	0.87	43.21	Download	Download
M45	F38070	28,700	2.91	3.74	6.81	4.80	5.59	3.74	7.13	1.54	1.54	1.30	0.05	0.94	44.18	Download	Download
M48	F38080	32,000	2.91	3.74	6.81	4.80	5.59	3.74	7.13	1.54	1.54	1.30	0.05	1.06	44.62	Download	Download
