Lifting Products Grade 100

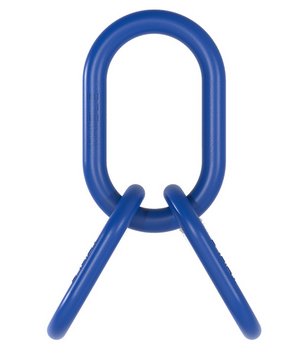

The Grade 100 master link assemblies TWN 1817 are used to assemble 3- and 4-leg wire rope slings. The extra large intermediate links enable an easy assembly of wire rope slings. The dimensions comply with DIN 5688-3.
The manufacturing and testing requirements comply with the ASTM A952/A952M, ISO 8539 and DIN EN 1677 parts 1 and 4, under consideration of Grade 100 working load limits.
Article-No. | Working SF 5:1* [lbs] | Working SF 4:1* [lbs] | Dimensions [inch] | Categorization of the Wire Rope Diameter*** [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||||
e | d1 | t1 | b1 | d2 | t2 | b2 | Fiber Rope | Steel Rope | ||||||
F1817016 | 8,600 | 10,800 | 7.88 | 0.63 | 4.33 | 2.36 | 0.51 | 3.55 | 1.97 | 0.47 | 0.43 | 2.45 | ||
F1817018 | 11,000 | 13,700 | 9.46 | 0.75 | 5.12 | 2.76 | 0.63 | 4.33 | 2.36 | 0.55 | 0.55 | 4.08 | ||
F1817022 | 15,700 | 19,400 | 11.43 | 0.87 | 6.30 | 3.55 | 0.71 | 5.12 | 2.76 | 0.63 | 0.63 | 6.79 | ||
F1817026 | 23,100 | 28,900 | 13.40 | 1.00 | 7.09 | 3.94 | 0.87 | 6.30 | 3.55 | 0.79 | 0.71 | 11.68 | ||
F1817032 | 34,600 | 43,200 | 16.15 | 1.26 | 9.06 | 4.93 | 1.00 | 7.09 | 3.94 | 0.94 | 0.87 | 19.84 | ||
F1817036 | 44,100 | 55,100 | 18.91 | 1.42 | 9.85 | 5.52 | 1.26 | 9.06 | 4.93 | 1.10 | 1.10 | 33.07 | ||
F1817045 | 66,100 | 82,700 | 22.46 | 1.77 | 12.61 | 6.90 | 1.42 | 9.85 | 5.52 | 1.25 | 1.25 | 53.79 | ||
F1817050 | 87,100 | 109,000 | 26.00 | 1.97 | 13.40 | 7.49 | 1.77 | 12.61 | 6.90 | 1.57 | 1.57 | 88.18 | ||
*considering a sling angle of α = 60°, **according to DIN EN 13414-1 for 3/4 leg slings | ||||||||||||||
