Lifting Products Grade 100 Lifting Products Grade 100

TWN 1819

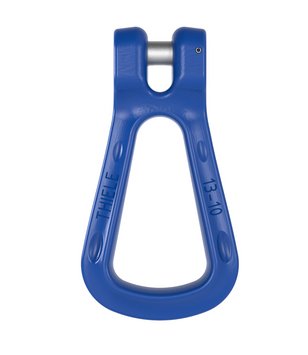

Clevis Master Links

The Grade 100 clevis master links TWN 1819 are predominantely used to assemble basket slings for bundling of loads. The manufacturing and testing requirements are based on the ISO 8539 and DIN EN 1677-1, under consideration of Grade 100 working load limits.

Clevis Master Links

Properties

Trade Size

Article-No.

Working
Load Limit


[lbs]

Dimensions

[inch]

Weight
app.

[lbs]

CAD


STEP

CAD


IGES

a

b

c

e

f

g

h

1/2"

F31025

15,000

7.44

4.02

1.26

5.61

2.36

4.33

0.87

2.45

Download

Download

Request this product >

Product Downloads

Operating and mounting instructions
