Lifting Products Grade 100

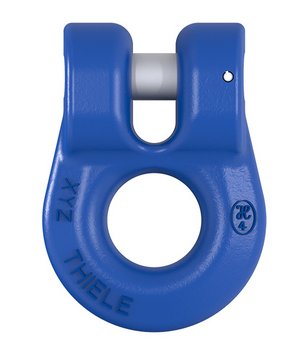

The Grade 100 ring shackles TWN 1812 are used to connect chains to sling components to assemble chain slings. The manufacturing and testing requirements are based on the ASTM A952/A952M, ISO 8539 and DIN EN 1677-1, under consideration of Grade 100 working load limits.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||
e | d1 | d2 | b | ||||||
1/4" | F31704 | 3,100 | 1.22 | 0.67 | 1.54 | 0.31 | 0.22 | ||
5/16" | F31714 | 5,700 | 1.46 | 0.83 | 1.97 | 0.43 | 0.51 | ||
3/8" | F31724 | 8,800 | 1.81 | 1.02 | 2.44 | 0.55 | 1.06 | ||
1/2" | F31734 | 15,000 | 2.32 | 1.30 | 3.11 | 0.71 | 1.87 | ||
5/8" | F31744 | 22,600 | 2.99 | 1.65 | 3.94 | 0.91 | 3.51 | ||
7/8" | F31745 | 42,700 | 3.94 | 2.24 | 5.31 | 1.20 | 8.66 | ||
