Lifting Products Grade 100

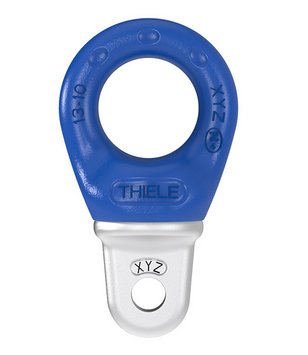

The Grade 100 swivel adapters TWN 1846 with ball-bearing supplement components with clevis design and align the individual suspension strands without twisting.
The swivel adapter is fixed to the clevis design of the end link, e.g. a sling hook. The large eyelet enables e.g. a connection to chain or rope strands as well as textile slings.
The manufacturing and testing requirements comply with DIN EN 1677-1 and ISO 8539, under consideration of Grade 100 working load limits.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | |||||||
e | d1 | d2 | d3 | b | c | a | f | ||||
5/16"* | F32820 | 5,700 | 3.70 | 1.77 | 0.63 | 0.63 | 3.03 | 2.05 | 4.61 | 0.33 | 1.63 |
3/8" | F32825 | 8,800 | 3.82 | 1.77 | 0.63 | 0.63 | 3.03 | 2.05 | 4.88 | 0.43 | 1.74 |
1/2"* | F32830 | 15,000 | 4.61 | 1.97 | 0.79 | 0.79 | 3.54 | 2.32 | 5.94 | 0.55 | 3.15 |
5/8" | F32835 | 22,600 | 5.75 | 2.56 | 0.98 | 0.98 | 4.53 | 2.87 | 7.44 | 0.67 | 6.00 |
*On request | |||||||||||
