Lifting Products Grade 80

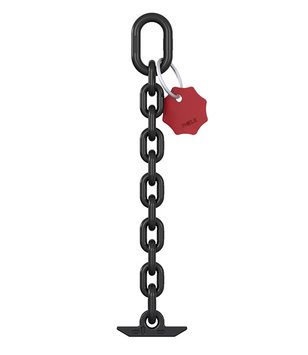

The Grade 80 T-handle chains TWN 0894 are predominantly used in civil engineering for the vertical transport of sheet piles.
The manufacturing and testing requirements are based on DIN EN 818-4 and comply with ASTM A906/A906M-02.
Trade Size
| Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||
l | d | h | b | a | t | ||||||
3/8" | F08811 | 4,300 | 15.96 | 0.51 | 0.57 | 1.18 | 3.74 | 2.36 | 3.75 | ||
3/8" | F08812 | 4,300 | 26.59 | 0.51 | 0.57 | 1.18 | 3.74 | 2.36 | 5.07 | ||
