Lifting Products Grade 80

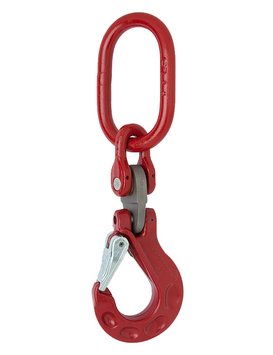

The Grade 80 isolation assemblies TWN 0893 are used for the transportation of components that require isolation to the crane hook. They isolate an electrical current flow up to a maximum of 1,000 volts.
The manufacturing and testing requirements are based on DIN EN 818-4 and comply to ASTM A906/A906M-02.
Trade Size
| Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||||||
e | d | c | b | g | t | h | ||||||
1/4" | F08904 | 2,500 | 12.20 | 0.71 | 0.67 | 2.76 | 0.94 | 5.12 | 0.79 | 3.75 | ||
5/16" | F08912 | 4,500 | 13.11 | 0.71 | 0.87 | 2.76 | 1.18 | 5.12 | 0.98 | 4.63 | ||
3/8" | F08898 | 7,100 | 14.80 | 0.71 | 1.10 | 2.76 | 1.46 | 5.12 | 1.26 | 7.17 | ||
1/2" | F08899 | 12,000 | 16.95 | 0.87 | 1.38 | 3.54 | 1.65 | 6.30 | 1.54 | 11.46 | ||
