Lifting Products Grade 80

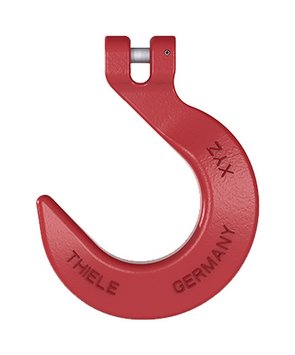

The Grade 80 clevis foundry hooks TWN 0859 are used to assemble chain slings, primarily for foundries. The manufacturing and testing requirements correspond to the ASTM A952/A952M, ISO 8539, DIN EN 1677-1.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||
e | g | h | c | ||||||
5/16" | F33310 | 4,500 | 4.33 | 2.60 | 1.30 | 1.06 | 2.47 | ||
3/8" | F33320 | 7,100 | 5.24 | 2.99 | 1.38 | 1.26 | 3.55 | ||
1/2" | F33330 | 12,000 | 6.26 | 3.50 | 1.61 | 1.50 | 7.50 | ||
5/8" | F33340 | 18,100 | 7.44 | 4.02 | 1.89 | 1.77 | 12.13 | ||
3/4" | F33355 | 28,300 | 8.54 | 4.49 | 2.13 | 2.01 | 19.84 | ||
7/8" | F33360 | 34,200 | 9.61 | 4.88 | 2.36 | 2.20 | 26.46 | ||
