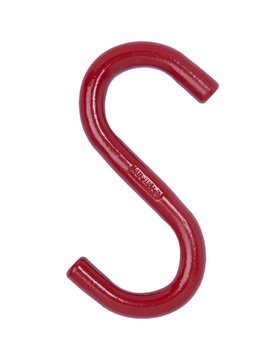

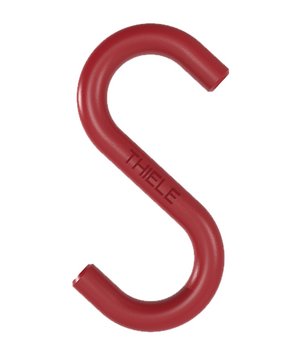

The Grade 80 S-hooks TWN 0860 can be used universally for lifting of loads, also in combination with chain slings. The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.
P.O. Box 470487
Tulsa, OK 74147
USA
Lifting Products Grade 80
TWN 0860
S-Hooks
Properties
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||
e | g | t | d | ||||||
F18130 | 350 | 3.15 | 1.10 | 1.18 | 0.39 | 0.26 | |||
F18160 | 550 | 3.94 | 1.42 | 1.50 | 0.47 | 0.46 | |||
F18180 | 900 | 5.12 | 1.81 | 1.89 | 0.63 | 1.06 | |||
F18200 | 1,800 | 6.30 | 2.20 | 2.28 | 0.79 | 2.01 | |||
1/4" | F18220 | 2,500 | 7.09 | 2.52 | 2.52 | 0.87 | 2.65 | ||
9/32" | F18230 | 3,500 | 7.87 | 2.76 | 2.76 | 1.02 | 4.19 | ||
5/16" | F18250 | 4,500 | 9.06 | 3.15 | 3.15 | 1.26 | 7.50 | ||
3/8" | F18260 | 7,100 | 10.24 | 3.54 | 3.54 | 1.42 | 10.58 | ||
F18280 | 8,800 | 11.81 | 4.09 | 4.09 | 1.57 | 14.99 | |||
F18290 | 9,900 | 13.78 | 4.80 | 4.76 | 1.77 | 22.05 | |||
1/2" | F18300 | 12,000 | 15.75 | 5.51 | 5.43 | 2.01 | 32.19 | ||
F18310 | 13,200 | 17.72 | 6.22 | 6.06 | 2.24 | 45.19 | |||
5/8" | F18320 | 18,100 | 19.69 | 6.30 | 6.30 | 2.48 | 60.41 | ||
11/16" | F18330 | 22,000 | 21.65 | 6.54 | 6.61 | 2.83 | 85.98 | ||
