Lifting Products Grade 80

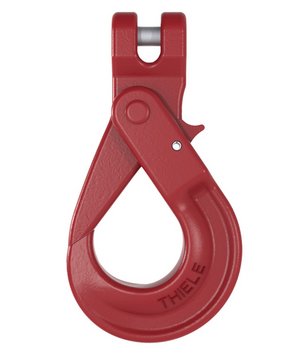

The Grade 80 clevis self-locking hooks TWN 0799 are used to assemble chain slings and are often used in the construction industry. The clevis design enables the direct attachment to the lifting chain.
The hooks lock automatically under load and may only be reopened manually if not under load anymore. The self-locking hooks comply with the ASTM A952/A952M and DIN EN 1677-3.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||
e | g | h | c | ||||||
1/4" | Z07279 | 2,500 | 3.86 | 1.10 | 0.87 | 0.59 | 1.26 | ||
5/16" | Z07280 | 4,500 | 4.80 | 1.30 | 0.98 | 0.79 | 2.05 | ||
3/8" | Z07281 | 7,100 | 5.91 | 1.77 | 1.38 | 1.06 | 3.86 | ||
1/2" | Z07282 | 12,000 | 7.32 | 2.13 | 1.61 | 1.30 | 7.17 | ||
5/8" | Z07296 | 18,100 | 8.46 | 2.64 | 2.13 | 1.54 | 13.67 | ||
11/16"-3/4" | F0922055 | 28,300 | 8.46 | 2.91 | 2.24 | 1.69 | 16.05 | ||
