Lifting Products Grade 80

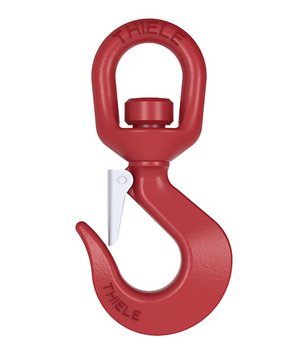

The Grade 80 swivel hooks TWN 0854 are used to assemble chain slings. The swivels enable the chain legs to be aligned without twisting. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320.
The manufacturing and testing requirements comply with the ASTM A952/A952M and DIN EN 1677-2.
Trade Size | Article-No. | Working 60°≤ α ≤ 75° [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||||||
d | f | b | e | g | a | c | h | l | m | ||||||
0,75 t | F32103 | 1,650 | 0.39 | 0.98 | 1.18 | 4.47 | 0.75 | 1.97 | 0.51 | 0.55 | 2.46 | 1.67 | 0.82 | ||
1/4" | F32100 | 2,500 | 0.39 | 0.98 | 1.18 | 4.45 | 0.83 | 1.97 | 0.55 | 0.75 | 2.87 | 2.05 | 0.84 | ||
5/16" | F32110 | 4,500 | 0.63 | 1.65 | 1.73 | 6.10 | 0.98 | 2.99 | 0.75 | 0.96 | 3.46 | 2.68 | 2.20 | ||
3/8" | F32120 | 7,100 | 0.63 | 1.65 | 1.73 | 6.38 | 1.10 | 2.99 | 0.81 | 1.12 | 4.09 | 2.83 | 2.65 | ||
1/2" | F32130 | 12,000 | 0.75 | 1.69 | 2.01 | 7.48 | 1.34 | 3.50 | 1.10 | 1.30 | 4.72 | 3.43 | 4.59 | ||
5/8" | F32140 | 18,100 | 0.98 | 2.36 | 2.52 | 9.72 | 1.65 | 4.49 | 1.38 | 1.69 | 6.14 | 4.33 | 9.81 | ||
