Lifting Products Grade 80

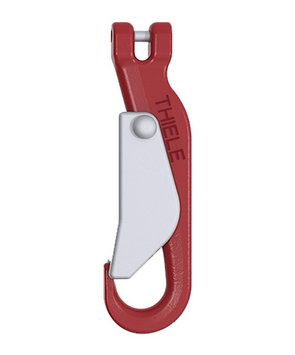

The Grade 80 engine-transport hooks TWN 0889 are used in chain slings as end fittings, predominantly for the transportion of engine blocks. The tip shape enables the attachment to small eyelets.
The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||
e | g | h | c | ||||||
1/4"* | F33439 | 1,100 | 5.39 | 0.75 | 0.51 | 0.47 | 1.21 | ||
*Compatible with trade size 6-8, but WLL limited to max 0,5 t. | |||||||||
