Lifting Products Grade 80

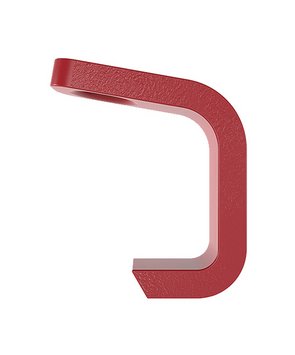

The Grade 80 plate hooks TWN 0873 with eyelet are used as end fittings in chain slings for the horizontal transportation of thick-walled sheet metals in steel constructions. The eyelet allows the chain to be passed through. The max. inclination angle is α = 60°. The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Working 60° ≤ α ≤ 75° [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | ||||
b | c | d | f | h | ||||||
7/32" | F35600 | 4,300 | 3.54 | 2.36 | 1.50 | 2.36 | 0.79 | 5.29 | ||
5/16" | F35601 | 7,500 | 3.54 | 3.54 | 1.65 | 2.76 | 0.98 | 7.72 | ||
3/8" | F35602 | 12,300 | 5.51 | 3.74 | 1.97 | 3.15 | 1.18 | 17.64 | ||
1/2" | F35603 | 20,800 | 5.71 | 3.94 | 2.56 | 3.54 | 1.38 | 27.60 | ||
5/8" | F35604 | 31,300 | 6.10 | 4.72 | 3.07 | 4.33 | 1.77 | 48.50 | ||
3/4" | F35605 | 49,000 | 6.89 | 5.12 | 3.62 | 5.12 | 2.17 | 55.12 | ||
7/8" | F35606 | 59,200 | 8.07 | 5.31 | 3.94 | 5.51 | 2.36 | 74.96 | ||
1" | F35607 | 82,600 | 9.06 | 5.71 | 4.65 | 6.30 | 2.76 | 110.23 | ||
1-1/4" | F35608 | 125,200 | 10.04 | 6.30 | 5.59 | 7.48 | 3.35 | 152.12 | ||
