TWN 0892

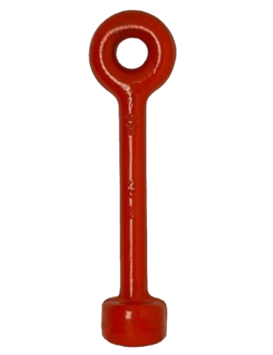

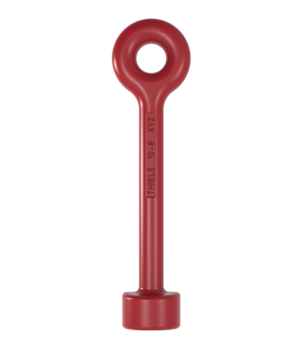

Key Hooks

The Grade 80 key hooks TWN 0892 are used in chain slings as end fittings, predominantly for the transportation of metal sheets with keyhole openings.

The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.

Key Hooks

Properties

Trade Size



Article-No.

Working
Load Limit


[lbs]

Dimensions

[inch]

Weight
app.


[lbs]

CAD


STEP

CAD


IGES

e

d1

d2

d3

d4

f

3/8"

F34250

7,100

6.61

0.67

0.79

0.67

1.57

0.98

1.59

Download

Download

Request this product >

Product Downloads

Operating and mounting instructions
