Lifting Products Grade 80

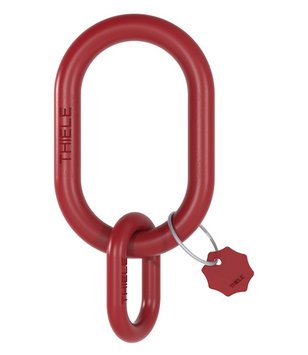

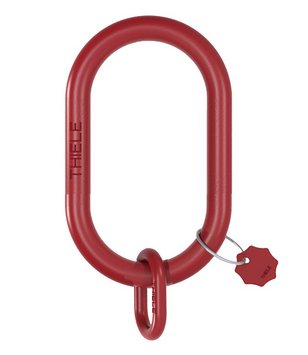

The Grade 80 oversized master link assemblies TWN 0815 are used to assemble 1-leg chain slings and are used with big crane hooks according to DIN 15401. The intermediate links enable the use of connecting links, e.g. THI-LOK® TWN 1320.
The dimensions comply with DIN 5688-3.
The manufacturing and testing requirements are based on the ASTM A952/A952M, DIN EN 1677 parts 1 and 4 and ISO 8539.
Trade Size | Article-No. | Working [lbs] | Dimensions [inch] | Suitable for Crane Hooks acc. DIN 15401 | Weight [lbs] | CAD STEP | CAD IGES | ||||||
e | d1 | t1 | b1 | d2 | t2 | b2 | |||||||
1/4" | F08150616 | 2,500 | 12.60 | 0.71 | 10.24 | 5.51 | 0.51 | 2.36 | 1.18 | 16 | 3.68 | ||
5/16" | F08150816 | 4,500 | 12.99 | 0.87 | 10.24 | 5.51 | 0.63 | 2.76 | 1.38 | 16 | 5.73 | ||
3/8" | F08151016 | 7,100 | 12.99 | 0.87 | 10.24 | 5.51 | 0.63 | 2.76 | 1.38 | 16 | 5.73 | ||
1/2" | F08151316 | 12,000 | 10.24 | 1.02 | 10.24 | 5.51 | 16 | 6.99 | |||||
5/8" | F08151616 | 18,100 | 10.24 | 1.18 | 10.24 | 5.51 | 16 | 9.48 | |||||
11/16" | F08151816 | 22,000 | 14.57 | 1.42 | 9.84 | 5.51 | 1.02 | 4.72 | 2.36 | 16 | 17.20 | ||
1/4" | F08150625 | 2,500 | 15.75 | 0.79 | 13.39 | 7.09 | 0.51 | 2.36 | 1.18 | 25 | 5.60 | ||
5/16" | F08150825 | 4,500 | 15.75 | 0.79 | 13.39 | 7.09 | 0.51 | 2.36 | 1.18 | 25 | 5.60 | ||
3/8" | F08151025 | 7,100 | 16.14 | 0.94 | 13.39 | 7.09 | 0.63 | 2.76 | 1.38 | 25 | 8.33 | ||
1/2" | F08151325 | 12,000 | 16.14 | 1.10 | 13.39 | 7.09 | 0.63 | 2.76 | 1.38 | 25 | 11.18 | ||
5/8" | F08151625 | 18,100 | 16.93 | 1.26 | 13.39 | 7.09 | 0.79 | 3.54 | 1.77 | 25 | 15.32 | ||
11/16" | F08151825 | 22,000 | 17.32 | 1.57 | 13.39 | 7.09 | 0.87 | 3.94 | 1.97 | 25 | 24.03 | ||
3/4" | F08152025 | 28,300 | 13.39 | 1.57 | 13.39 | 7.09 | 25 | 22.05 | |||||
7/8" | F08152225 | 34,200 | 13.39 | 1.57 | 13.39 | 7.09 | 25 | 22.05 | |||||
1/4" | F08150640 | 2,500 | 19.29 | 0.87 | 16.93 | 8.66 | 0.51 | 2.36 | 1.18 | 40 | 8.22 | ||
5/16" | F08150840 | 4,500 | 19.29 | 0.87 | 16.93 | 8.66 | 0.51 | 2.36 | 1.18 | 40 | 8.22 | ||
3/8" | F08151040 | 7,100 | 19.69 | 1.02 | 16.93 | 8.66 | 0.63 | 2.76 | 1.38 | 40 | 11.75 | ||
1/2" | F08151340 | 12,000 | 19.69 | 1.18 | 16.93 | 8.66 | 0.63 | 2.76 | 1.38 | 40 | 15.54 | ||
5/8" | F08151640 | 18,100 | 20.47 | 1.34 | 16.93 | 8.66 | 0.79 | 3.54 | 1.77 | 40 | 20.75 | ||
11/16" | F08151840 | 22,000 | 20.87 | 1.65 | 16.93 | 8.66 | 0.87 | 3.94 | 1.97 | 40 | 31.97 | ||
3/4" | F08152040 | 28,300 | 16.93 | 1.65 | 16.93 | 8.66 | 40 | 29.76 | |||||
7/8" | F08152240 | 34,200 | 16.93 | 1.65 | 16.93 | 8.66 | 40 | 29.81 | |||||
