Lifting Products Grade 80

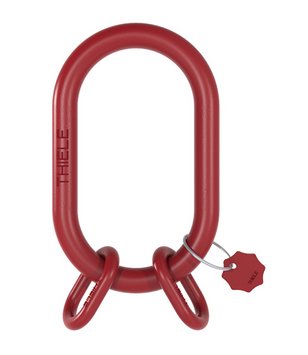

The Grade 80 oversized master link assemblies TWN 0816 are used to assemble 2-leg chain slings and are used with big crane hooks according to DIN 15401. The intermediate links enable the use of connecting links, e.g. THI-LOK® TWN 1320.
The dimensions comply with DIN 5688-3.
The manufacturing and testing requirements are based on the ASTM A952/A952M, DIN EN 1677 parts 1 and 4 and ISO 8539.
Trade Size | Article-No. | Working 60°≤ α ≤ 75° [lbs] | Dimensions [inch] | Suitable for Crane Hooks acc. DIN 15401 | Weight [lbs] | CAD STEP | CAD IGES | ||||||
e | d1 | t1 | b1 | d2 | t2 | b2 | |||||||
1/4" | F08160616 | 4,300 | 12.60 | 0.71 | 10.24 | 5.51 | 0.51 | 2.36 | 1.18 | 16 | 4.14 | ||
5/16" | F08160816 | 7,800 | 12.99 | 0.87 | 10.24 | 5.51 | 0.63 | 2.76 | 1.38 | 16 | 6.53 | ||
3/8" | F08161016 | 12,300 | 12.99 | 1.02 | 10.24 | 5.51 | 0.63 | 2.76 | 1.38 | 16 | 8.60 | ||
1/2" | F08161316 | 20,800 | 13.78 | 1.18 | 10.24 | 5.51 | 0.79 | 3.54 | 1.77 | 16 | 12.68 | ||
5/8" | F08161616 | 31,300 | 14.57 | 1.42 | 9.84 | 5.51 | 1.02 | 4.72 | 2.36 | 16 | 20.79 | ||
1/4" | F08160625 | 4,300 | 15.75 | 0.87 | 13.39 | 7.09 | 0.51 | 2.36 | 1.18 | 25 | 5.95 | ||
5/16" | F08160825 | 7,800 | 16.14 | 0.94 | 13.39 | 7.09 | 0.63 | 2.76 | 1.38 | 25 | 9.13 | ||
3/8" | F08161025 | 12,300 | 16.14 | 1.10 | 13.39 | 7.09 | 0.63 | 2.76 | 1.38 | 25 | 11.97 | ||
1/2" | F08161325 | 20,800 | 16.93 | 1.26 | 13.39 | 7.09 | 0.79 | 3.54 | 1.77 | 25 | 16.93 | ||
5/8" | F08161625 | 31,300 | 17.32 | 1.57 | 13.39 | 7.09 | 0.87 | 3.94 | 1.97 | 25 | 26.23 | ||
11/16" | F08161825 | 38,100 | 17.32 | 1.57 | 13.39 | 7.09 | 0.87 | 3.94 | 1.97 | 25 | 26.23 | ||
3/4" | F08162025 | 49,000 | 18.90 | 1.77 | 13.39 | 7.09 | 1.26 | 5.51 | 2.76 | 25 | 41.01 | ||
1/4" | F08160640 | 4,300 | 19.29 | 1.02 | 16.93 | 8.66 | 0.63 | 2.76 | 1.38 | 40 | 12.57 | ||
5/16" | F08160840 | 7,800 | 19.69 | 1.02 | 16.93 | 8.66 | 0.51 | 2.36 | 1.18 | 40 | 12.57 | ||
3/8" | F08161040 | 12,300 | 19.69 | 1.18 | 16.93 | 8.66 | 0.63 | 2.76 | 1.38 | 40 | 16.36 | ||
1/2" | F08161340 | 20,800 | 20.47 | 1.34 | 16.93 | 8.66 | 0.79 | 3.54 | 1.77 | 40 | 21.78 | ||
5/8" | F08161640 | 31,300 | 20.87 | 1.65 | 16.93 | 8.66 | 0.87 | 3.94 | 1.97 | 40 | 34.17 | ||
11/16" | F08161840 | 38,100 | 20.87 | 1.65 | 16.93 | 8.66 | 0.87 | 3.94 | 1.97 | 40 | 34.17 | ||
7/8" | F08162240 | 59,200 | 22.44 | 1.89 | 16.93 | 8.66 | 1.26 | 5.51 | 2.76 | 40 | 52.25 | ||
