TWN 0868

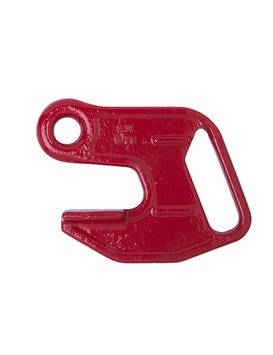

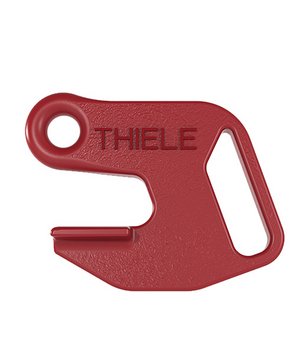

Pipe Transport Hooks

The Grade 80 pipe transport hooks TWN 0868 are used as forged end fittings in 2-leg chain slings to lift pipes.
The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.

Pipe Transport Hooks

Properties

Trade Size

Article-No.

Working
Load Limit


[lbs]

Dimensions

[inch]

Weight
app.


[lbs]

CAD


STEP

CAD


IGES

b

a

d1

d2

g

h

c

1/2"

F32608

12,000

6.85

8.90

1.10

0.79

1.93

2.24

2.36

6.83

Download

Download

7/8"

F32641

34,200

10.79

13.58

1.73

1.18

3.15

3.54

3.74

32.23

Download

Download
