Lifting Products Grade 80

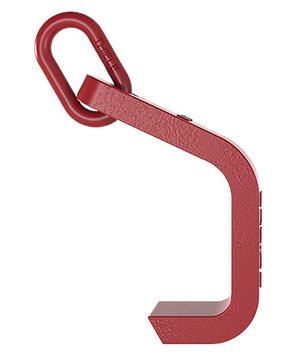

The Grade 80 plate hooks TWN 0872 with intermediate link are used as end fittings of chain slings for the horizontal transportion of thick-walled sheet metals in steel constructions. The intermediate links enable the connection of additional slings.
The hooks are used in 2-leg basket chain slings, the max. inclination angle is α = 60°. The manufacturing and testing requirements correspond to the ISO 8539 and DIN EN 1677-1.
Trade Size | Article-No. | Working 60° ≤ α ≤ 75° [lbs] | Dimensions [inch] | Weight [lbs] | CAD STEP | CAD IGES | |||||
e | b | c | d | f | h | ||||||
7/32" | F35500 | 4,300 | 8.70 | 3.54 | 2.36 | 0.63 | 2.36 | 0.79 | 5.51 | ||
5/16" | F35501 | 7,500 | 9.61 | 3.54 | 3.54 | 0.63 | 2.76 | 0.98 | 8.82 | ||
3/8" | F35502 | 12,300 | 13.07 | 5.51 | 3.74 | 0.71 | 3.15 | 1.18 | 22.22 | ||
1/2" | F35503 | 20,800 | 14.17 | 5.71 | 4.13 | 0.87 | 3.54 | 1.38 | 24.25 | ||
5/8" | F35504 | 31,300 | 15.91 | 6.10 | 4.72 | 1.02 | 4.33 | 1.77 | 37.04 | ||
3/4" | F35505 | 49,000 | 17.52 | 6.89 | 5.12 | 1.26 | 4.72 | 2.17 | 66.14 | ||
7/8" | F35506 | 59,200 | 20.08 | 8.07 | 5.31 | 1.42 | 5.51 | 2.36 | 88.85 | ||
1" | F35507 | 82,600 | 22.05 | 9.06 | 5.71 | 1.77 | 6.30 | 2.76 | 135.58 | ||
1-1/4" | F35508 | 125,200 | 24.45 | 10.04 | 6.30 | 1.97 | 7.09 | 3.35 | 188.50 | ||
