TWN 1000
TM Chain Blocks

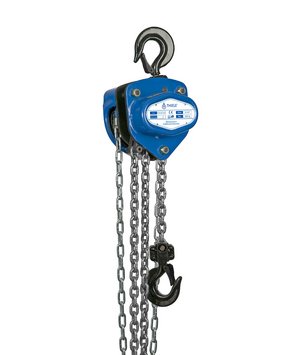

The TM chain blocks TWN 1000 are hand operated portable devices for pulling, lifting and moving of loads. The integrated slipping clutch works as an overload protection. The galvanized and calibrated THIELE-hoist chains TWN 0062 comply with the requirements of DIN EN 818-7.

Properties

	Unit	TM-B-OP 05N	TM-B-OP 10N	TM-B-OP 20N	TM-B-OP 30N	TM-B-OP 50N
Working Load Limit	[t]	0.5	1.0	2.0	3.0	5.0
Lift app. 10 ft. (3.05 m)	[Article-No.]	F063511	F063611	F063711	F063811	F063911
Lift app. 15 ft. (4.60 m)	[Article-No.]	F063512	F063612	F063712	F063812	F063912
Lift app. 20 ft. (6.10 m)	[Article-No.]	F063513	F063613	F063713	F063813	F063913
Lift app. 30 ft. (9.10 m)	[Article-No.]	F063514	F063614	F063714	F063814	F063914
Lift app. 40 ft. (12.20 m)	[Article-No.]	F063515	F063615	F063715	F063815	F063915
Chain Falls	[piecesl]	1	1	1	2	2
Effort to lift for max. Working Load	[lbs]	50.71	66.14	77.16	59.52	90.39
Loadchain diameter	[inch]	0.24	0.24	0.31	0.31	0.39
Headroom (A)	[inch]	10.63	12.48	16.30	18.31	25.04
Width	[inch]	5.00	6.22	7.36	8.27	11.34
Depth	[inch]	5.16	5.51	6.34	6.34	7.48
Hook opening (upper)	[inch]	1.42	1.65	1.81	2.13	2.52
Hook opening (lower)	[inch]	1.42	1.65	1.81	2.13	2.52
Net weight (for lift 3,05 m)	[lbs]	30.05	35.34	52.38	66.05	63.05
Chain Block only	[Article-No.]	F06353	F06363	F06373	F06383	F06393
