Load Lifting Equipment

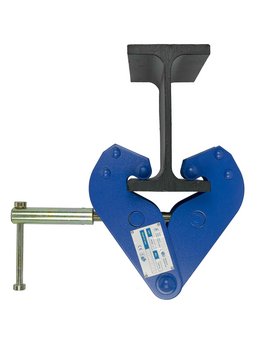

The TM girder clamps TWN 0899 are predominantly used as attachment points for lifting gears, e.g. TM chain blocks and TM lever blocks, on steel beam profiles. The girder clamps are fastened over a wide flange width range using spindles.
Trade Size | Article-No. | Working [t] | Dimensions [inch] | Adjustable beam width [inch] | Weight [lbs] | |||||||||
a | b min. | b max. | c | d | e | f min. | f max. | g | h | |||||
1 | Z08133 | 1.00 | 10.24 | 7.87 | 14.17 | 2.52 | 0.20 | 8.46 | 4.02 | 6.10 | 0.98 | 0.73 | 2,95-9,06 | 9.70 |
2 | Z08134 | 2.00 | 10.24 | 7.87 | 14.17 | 2.91 | 0.24 | 8.46 | 4.02 | 6.10 | 0.98 | 0.87 | 2,95-9,06 | 11.24 |
3 | Z08135 | 3.00 | 13.94 | 9.25 | 19.29 | 4.06 | 0.31 | 10.24 | 5.51 | 8.86 | 1.77 | 0.94 | 3,15-12,60 | 22.27 |
5 | Z08136 | 5.00 | 13.94 | 9.25 | 19.29 | 4.33 | 0.39 | 10.24 | 5.51 | 8.86 | 1.77 | 1.10 | 3,15-12,60 | 26.01 |
